| Brand Name : | FUTEN |
| Model Number : | ZJB-300 |
| Price : | Negotiable |
| Delivery Time : | 30 work days |

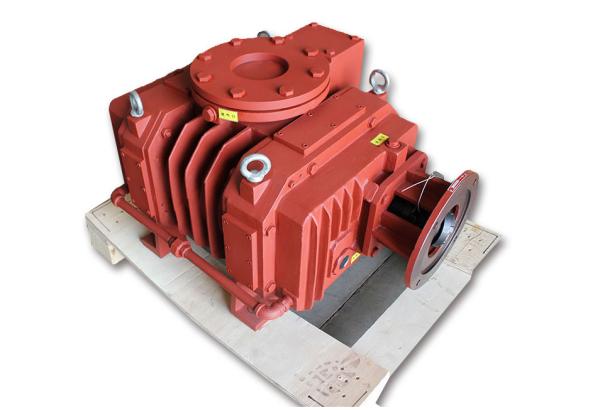

360L/S Roots Vacuum Pump as Mechanical Booster Pump for Vacuum Furnace Heat Treatment ZJB-300
| MODEL | Ultimate Pressure(Pa) | Suction capacity(L/s) | Compression Ratio(Pa) | Flange Size | Power(KW) | Speed(rpm) | Noise dB(A) | Oil(L) | |
| Inlet(mm) | Outlet(mm) | ||||||||
| ZJB-300 | 0.05 | 360 | 30 | 150 | 100 | 4 | 2850 | 78 | ≤2 |
The Roots vacuum pump is a rotary positive displacement vacuum pump without internal compression, also known as a mechanical booster pump. It is an ideal vacuum obtaining device for quickly removing gas from a closed container. When used in the field of vacuum engineering, it is generally connected with a liquid (water) ring vacuum pump, a gas-cooled Roots vacuum pump, an oil rotary vacuum pump, a dry vacuum pump, etc. to form a vacuum unit system. Widely used in electronics, chemical, pharmaceutical, metallurgical, food, textile, environmental protection and other industrial fields.
Specialties
| ◆ High pumping suction speed within the widely pressure range ( suction speed-30~20000L/s), it will improve the suction speed and ultimate vacuum speed as a " accelerator" |
| ◆ It is quick start |
| ◆ the pump chamber of Roots vacuum pumps is free of any sealing agents or lubricants. It is insensitive in the dust and vapor, which can keep the cleaning vacuum. |
| ◆ The absence of reciprocating masses also affords trouble-free dynamic balancing, which means that Roots vacuum pumps operate extremely quietly in spite of their high speeds |

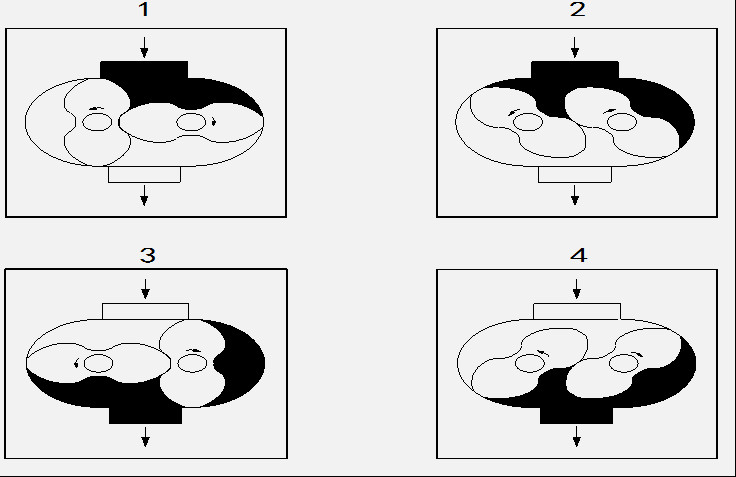

| ◆ In the Roots vacuum pump, two synchronously counter-rotating rotors rotate contactlessly in a houseing, running smoothly, reliable. |
| ◆ There is no friction in the suction chameber , a Roots vacuum pump can be operated at high rotation speeds, low power usage. |
| ◆ No need the exhaust valve |
| ◆ The gas in the pump flow by vertically, it is good to remove the dirty and condensate from the gas. |
| ◆ Compact design, low current consumption, low operation and maintenance costs. |
|
|
